Product Summary

The MC33262DR2G is a active power factor controller. It is specifically designed for use as a preconverter in electronic ballast and in off-line power converter applications.

Parametrics

Absolute maximum ratings: (1)Total Power Supply and Zener Current:30mA; (2)Output Current, Source or Sink:500mA; (3)Current Sense, Multiplier, and Voltage Feedback Inputs:-1.0V to +10V; (4)Zero Current Detect Input: High State Forward Current:50mA, Low State Reverse Current:-10mA; (5)Operating Junction Temperature:+150℃; (6)Operating Ambient Temperature:-40℃ to +105℃; (7)Storage Temperature:-65℃ to +150℃.

Features

Features: (1)Overvoltage Comparator Eliminates Runaway Output Voltage; (2)Internal Startup Timer; (3)One Quadrant Multiplier; (4)Zero Current Detector; (5)Trimmed 2% Internal Bandgap Reference; (6)Totem Pole Output with High State Clamp; (7)Undervoltage Lockout with 6.0 V of Hysteresis; (8)Low Startup and Operating Current; (9)Supersedes Functionality of SG3561 and TDA4817; (10)Pb-Free Packages are Available.

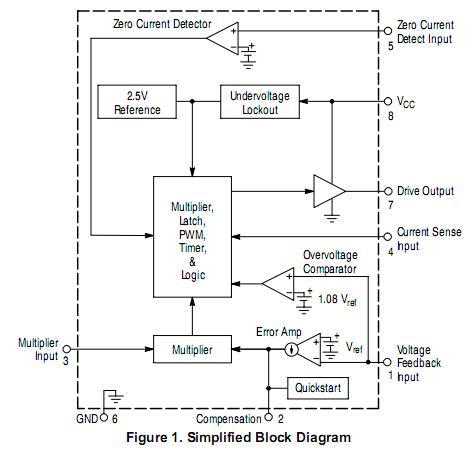

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC33262DR2G
MC33262DR2G
ON Semiconductor
Power Factor Correction ICs Critical Mode PFC w/OVP
Data Sheet
0-1: $0.58
1-25: $0.53
25-100: $0.40
100-500: $0.36
