Product Summary
The MC33074DR2G is a Single Supply 3.0 V to 44 V Operational Amplifier which offers 4.5 MHz of gain bandwidth product, 13 V/μs slew rate and fast settling time without the use of JFET device technology.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (from VEE to VCC): +44 V; (2)Output Short Circuit Duration: Indefinite Sec; (3)Operating Junction Temperature: +150 ℃; (4)Storage Temperature Range: -60 to +150 ℃.
Features
Features: (1)Wide Bandwidth: 4.5 MHz; (2)High Slew Rate: 13 V/μs; (3)Fast Settling Time: 1.1 μs to 0.1%; (4)Wide Single Supply Operation: 3.0 V to 44 V; (5)Wide Input Common Mode Voltage Range: Includes Ground (VEE); (6)Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); (7)Large Output Voltage Swing: -14.7 V to +14 V (with ±5 V Supplies).

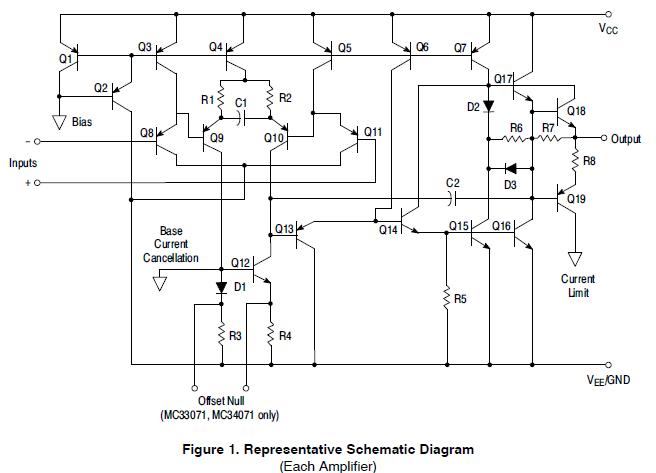

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33074DR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-44V Quad 5mV VIO Industrial Temp |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MC3302/4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DW |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DWG |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM |
Data Sheet |
|
|
||||||||||||
|
MC33023DWR2 |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DWR2G |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM |
Data Sheet |
|
|
||||||||||||
