Product Summary
The PCA82C251T/N3 is a CAN transceiver for 24 V systems. It is the interface between a CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Parametrics
Absolute maximum ratings: (1)supply voltage: -0.3 +7.0 V; (2)DC voltage at pins 1, 4, 5 and 8: -0.3 VCC + 0.3 V; (3)DC voltage at pin 6 (CANL): -36 +36 V at 0 V < VCC < 5.5 V; TXD HIGH or floating; (4)DC voltage at pins 7 (CANH): -36 +36 V at 0 V < VCC < 5.5 V; no time limit ; (5)transient voltage at pins 6 and 7: -200 to +200 V; (6)storage temperature: -55 to +150 ℃; (7)ambient temperature: -40 to +125 ℃; (8)virtual junction temperature: -40 to +150 ℃; (9)electrostatic discharge voltage: -2500 to +2500 V.
Features
Features: (1)Fully compatible with the "ISO 11898-24 V" standard; (2)Slope control to reduce Radio Frequency Interference (RFI); (3)Thermally protected; (4)Short-circuit proof to battery and ground in 24 V powered systems; (5)Low-current Standby mode; (6)An unpowered node does not disturb the bus lines; (7)At least 110 nodes can be connected; (8)High speed (up to 1 MBd); (9)High immunity against electromagnetic interference.

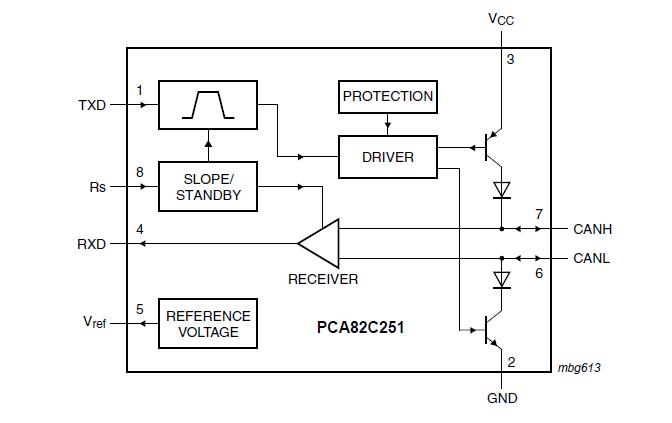

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCA82C251T/N3 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
PCA82C251T/N3,112 |
NXP Semiconductors |
Network Controller & Processor ICs 24V CAN TRNSCVR SO |
Data Sheet |
Negotiable |
|
||||
|
PCA82C251T/N3,118 |
NXP Semiconductors |
Network Controller & Processor ICs CAN TRANSCEIVER 24V SYSTEMS |
Data Sheet |
Negotiable |
|
||||
