Product Summary
The LMV324MX is a low voltage (2.7–5.5V) version of the dual and quad commodity op amps, which currently operate at 5–30V. The LMV324MX is the single version.
Parametrics
Absolute maximum ratings: (1)ESD Tolerance: Machine Model 100V, Human Body Model, LMV358/324 2000V; (2)Differential Input Voltage: ± Supply Voltage; (3)Supply Voltage (V+–V-): 5.5V; (4)Output Short Circuit to V +; (5)Output Short Circuit to V-; (6)Soldering Information Infrared or Convection (20 sec): 235℃.
Features
Features: (1)Guaranteed 2.7V and 5V Performance; (2)No Crossover Distortion; (3)Space Saving Package SC70-5 2.0x2.1x1.0mm; (4)Industrial Temp. Range -40℃ to +85℃; (5)Gain-Bandwidth Product 1MHz; (6)Low Supply Current: 410μA; (7)Rail-to-Rail Output Swing @ 10kΩ: V+: -10mV, V-: +65mV; (8)VCM -0.2V to V+ -0.8V.

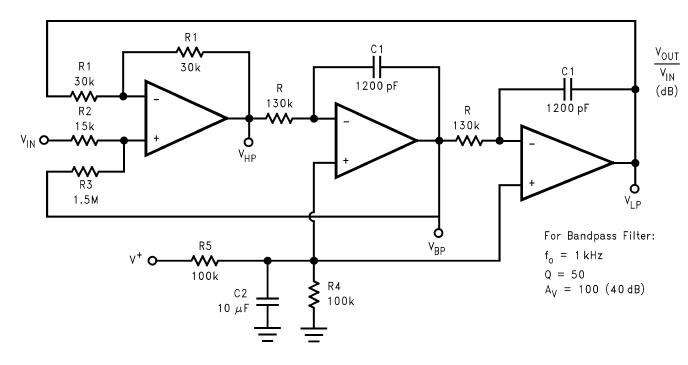

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMV324MX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LMV324MX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps GEN PURP, LOW VLTG, RRO OP AMP |
Data Sheet |
|
|
||||||||||||
